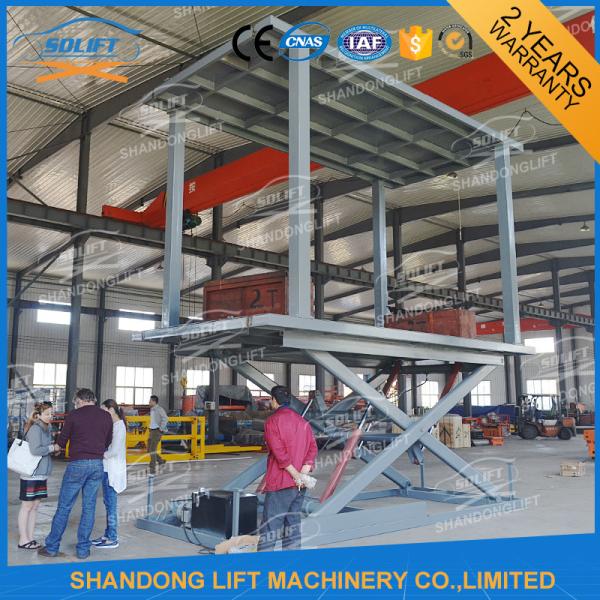

Hydraulic Mobile Electric Car Lift For Garage

Brand Name : SDLIFT Or OEM

Model Number : SJG3-3

Certification : CE

Place of Origin : China

MOQ : 1 UNIT

Price : USD7800- USD13800 / UNIT

Payment Terms : T/T

Supply Ability : 1200units per year

Delivery Time : 30 days

Packaging Details : Iron case or plywood case package

Design : Scissor

Type : Four Cylinders Hydraulic Lift

Warranty : 24 Months

Installation : Underground

Application : Garage Car Lift

Material : High Strength Manganese Steel

Color : Optional

Contact Now

6T 3M Hydraulic Mobile Electric Garage Car Lift with CE







Application:



- The garage car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 2 sets control system installed on the garage car lift, 1 control box below, and 1 hand controller that can be operated on work platform.



Hydraulic Mobile Electric Car Lift For Garage





The frequent models we supplied for clients:



MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V
The garage car lift can be customized as your detailed size.



Configuration:



1) Platform Material: rectangular tube +checkered iron

2) Scissor material: high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw or as your requests.

4) High Precision Hydraulic Cylinder.

5) Piston Rod: hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Parts showing:



Hydraulic Mobile Electric Car Lift For Garage



Safety:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps garage car lift to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the garage car lift are passed 1.2 times loading test before leaving factory.



The workshops:


Hydraulic Mobile Electric Car Lift For Garage



The Certificates:



Hydraulic Mobile Electric Car Lift For Garage



Our service:



1) We can design the customerized garage car lift as per your requirement.
2) The garage car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
