3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE SGS

Brand Name : SDLIFT Or OEM

Model Number : SJG2.5-3.5

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 UNIT

Price : USD4980- USD7800 / UNIT

Supply Ability : 3600units per year

Delivery Time : 5-20 work days

Packaging Details : Iron case or plywood case package

Name : Hydraulic Scissor Car Lift

Load Capacity : 1ton-20ton (as request)

Lift Height : 1.5m-12m (as request)

Safe Device : Explosion-Proof Lock Valve

Motor : From Italy or Chinese famous brand

Lift System : Hydraulic System

Power Supply : 220V/240V/380V/415V (as request)

Material : high strength Manganese Steel

Color : red, grey, yellow, blue, or as your optional

Application : Garage Car Mini Lift For Parking

Loading Capacity : 2500kgs

Lifting Height : 3500mm

Platform Size : 5500mm x 2500mm

Contact Now

2.5T 3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE Car Parking Lift​:



Description:

Hydraulic Scissor Car Lift is a widely used car lift equipment.It's scissor structure, make the lifting platform stability ,wide platform and high bearing capacity,when lifting has higher .It makes aloft work more efficient and more security.It makes parking your car in the upstairs become possibility and more efficient and more security.



Advantages:

Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.



Product parameters we supplied for clients:





MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

700mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1050mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

950mm

220V, 240V, 380V or 400V

The hydraulic scissor car lift can be customized as your detailed size.



Safety:

1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.

2. The work table would equipped the guardrail to guarantee the safety.

3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.

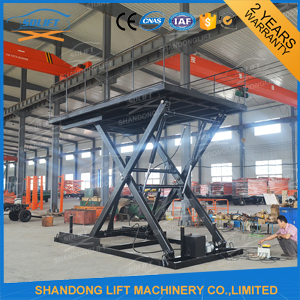

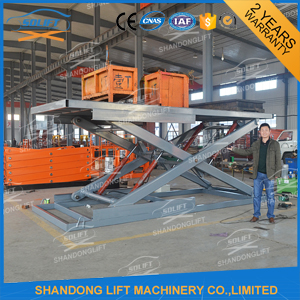

Products showing in our Fcatory:



3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE SGS3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE SGS

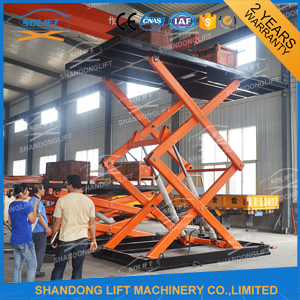

Customer Visiting for ordinging the Hydraulic Scissor Car Lift:



3.5m Hydraulic Scissor Car Lift / Hydraulic Home Garage CE SGS
